Special Application

Hover over me.
Special Applications Gauge Can Include Taper Measurement Gauge,O Ring Groove Measurement,Ball Screw Measurement Gauge,Slot Measurement Gauge,Deep Hole Measurement Gauge,Spline Measurement Gauge,Spherical Diameter Measurement,Thread Measurement Gauge.
What is a Special Application? Sangha are pioneers in special application gauges, which are ideal for non-standard and difficult-to-reach measurements. Special applications can include taper gauges, o-ring grooves, deep holes, splines, threads,chamfers, and ball nut screws, to name a few. Sangha can custom build gauges to suit most measuring requirements. Our gauges are adaptable to different environments; for example, a special Deep Bore Hole Gauge can be extended to 25 meters or above simply and cost-effectively. Our special applications have been tried and tested worldwide, and our gauges are robust enough to use in the most challenging of environments.
Process for ordering a special application gauge:
The process for a Sangha special gauge is very simple. In the first instance, email us or call us to discuss your requirement. Then we will ask you to send us a drawing of the measurement problem. Or, where practical, send us the actual part on which the measurement is required (though a drawing will normally suffice). From the drawing (or the part), we can send you a detailed quotation for your approval. Then, our normal lead times are two to four weeks depending on the complexity of the project. Our special applications are delivered worldwide, and location is not an issue. Our special applications are a cost-effective way to improve your factory processes and speed up your production with accuracy and convenience.

Taper Measurement Gauge

Available With Different Contact Points Including Spherical And Blind Bore, The Sangha Taper Gauge Provides An Efficient And Accurate Was To Measure Tapers.

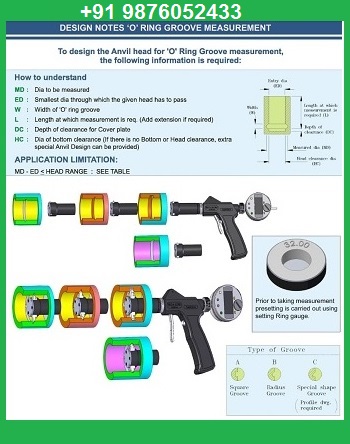

O Ring Groove Measurement

O Ring Grooves Measurement Gauge Are Notoriously Difficult To Measure,Especially When In A Difficult To Reach Location. Our Simple Measuring System Enables You To Specify Your Exact Requirements And Save Time And Money In The Process.

Ball Screw Measurement Gauge

Often Considered A Difficult To Measure Problem, Sangha Have Developed An Innovative And Efficient Way To Accurately Measure Ball Nut Screws. Made To Your Exact Requirements,This Is By Far The Simplest And Most Cost-Effective Method.

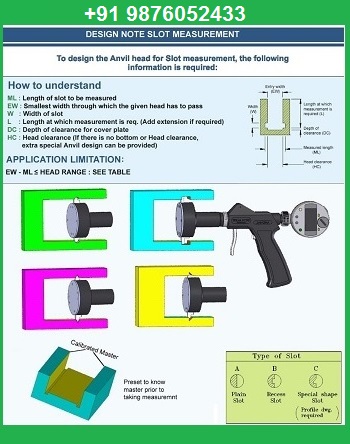

Slot Measurement Gauge

Ergonomic And Able To Measure Hard To Reach Places.The Sangha Slot Measurement Gauge Is An Efficient And Cost Effective Way To Measure Difficult To Measure Slots.Custom Built To Individual Requirements.

Deep Hole Measurement Gauge

Used Extensively In The Oil And Gas Industry, This Is An Ergonomic And Easy-To-Use Deep Hold Measuring System. The Depth Can Be Any Length (Our Longest To Date Has Been 30 Metres But It Can Be Any Length Necessary).

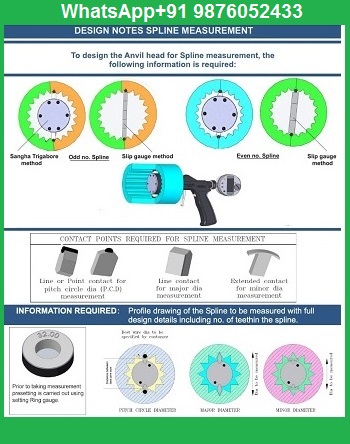

Spline Measurement Gauge

A simple, efficient and cost effective way to measure the best wire pitch diameter of splines. This is an easy-to-use and very ergonomic pistol grip (or level grip) instrument that is a great alternative to the slip gauge and wire method.

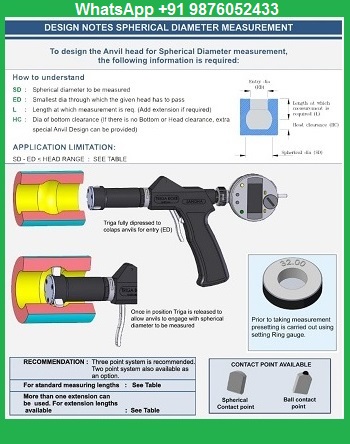

Spherical Diameter Measurement

Often A Difficult Problem To Solve, This Clever Solution Will Enable Shop Floor Operatives To Easily And Quickly Measure Problematic Spherical Diameters.

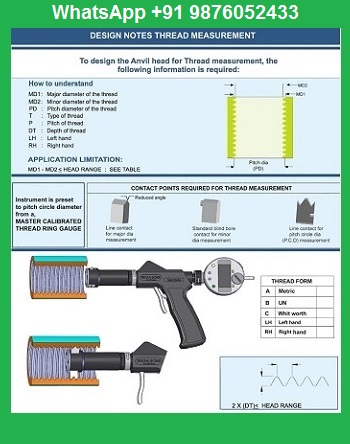

Thread Measurement Gauge

A Quick And Efficient Way To Measure Pitch Diameters Of Threads, Here Is A Simple And Cost Effective Alternative To More Traditional (And Time Consuming) Methods.Build To Individual Specifications, Here Is A Great Way To Streamline Shop Floor Thread Measurement.
